无法为Workshare项目设置Interference Checking Service

最近在项目支持过程中遇到一个问题，当在Project Management里设置Interference Checking Service时出现Object variable or with block variable not set的错误提示，如下图：

问题分析：

1. 这是一个Global Workshare项目

2. 近期由于Satellite站点更换服务器重新搭建了GWC

3. 重新搭建时使用的Satellite站点的Model备份，而不是Host端的备份

4. 在Errorlog中发现Stored Procedure “ITFCHKIFCPilotStatus” did not return any row for oid的错误提示

问题原因：

对于Global Workshare项目，MDB中ITFCHKIFCPilotStatus表的数据只存储在Host，并不会复制到Satellite站点，当Host端使用Satellite的MDB备份重新搭建环境时，MDB中此表的数据是缺失的，就会提示此错误

解决办法：

Host端的Smart3D Admin需要在SQL Server Management Studio中对MDB执行以下l语句

if exists(select * from ITFCHKIFCPilotStatus)
  BEGIN
    Raiserror( N'One or more rows exists in ITFCHKIFCPilotStatus table -- so new row is not inserted', 10, 1);
  END
ELSE
  DECLARE curBOs  CURSOR FOR
  SELECT A.ObjectOid FROM dbo.CoreNamedObjects as A
      JOIN dbo.COREBaseClass B with(nolock) on ((A.ObjectName like 'IfcPilotStat%')
      and (A.ObjectOid = B.oid))
  DECLARE @boOid uniqueidentifier
  DECLARE @coun int
  SET @coun = 0
  OPEN  curBOs
  FETCH NEXT FROM curBOs INTO @boOid
    WHILE @@FETCH_STATUS = 0
      BEGIN
        SET @coun = @coun + 1;
        FETCH NEXT FROM curBOs INTO @boOid
      END;
  CLOSE curBOs
  DEALLOCATE curBOs
  if @coun = 0
    BEGIN
      Raiserror( N'No row exists in CoreNamedObjects table starting with IfcPilotStat -- so new row is not inserted in ITFCHKIFCPilotStatus table', 10, 1);
      RETURN
    END
  if @coun > 1
    BEGIN
      Raiserror( N'More than one row exists in CoreNamedObjects table starting with IfcPilotStat -- so new row is not inserted in ITFCHKIFCPilotStatus table', 10, 1);
      RETURN
    END
  BEGIN
    DECLARE @dat as DATE
    DECLARE @mindat as DATE
    SET @dat = GetUTCDate();
    set @mindat = (Select MIN(DateCreated) from COREBaseClass);
    Raiserror( N'New row inserted in ITFCHKIFCPilotStatus table', 10, 1);
    exec sp_executesql N'execute dbo.ITFCHKIfcPilotStatusSetProc @P1 , @P2, @P3,
    @P4, @P5, @P6, @P7, @P8, @P9, @P10, @P11, @P12, @P13, @P14, @P15, @P16, @P17, @P18,
    @P19, @P20, @P21, @P22, @P23, @P24, @P25, @P26',N'@P1 uniqueidentifier,
    @P2 int,@P3 int,@P4 int,@P5 int,@P6 int,@P7 datetime,@P8 datetime,@P9 datetime,
    @P10 datetime,@P11 datetime,@P12 int,@P13 int,@P14 int,@P15 int,@P16 int,@P17 datetime,
    @P18 datetime,@P19 datetime,@P20 datetime,@P21 datetime,@P22 int,@P23 int,
    @P24 nvarchar(1),@P25 datetime,@P26 float',
    @boOid,1,0,2,0,0,@dat,@dat,@dat,0,@dat,1,0,2,0,0,@dat,@mindat,@dat,0,@dat,2,0,NULL,0.0,0.0
  END

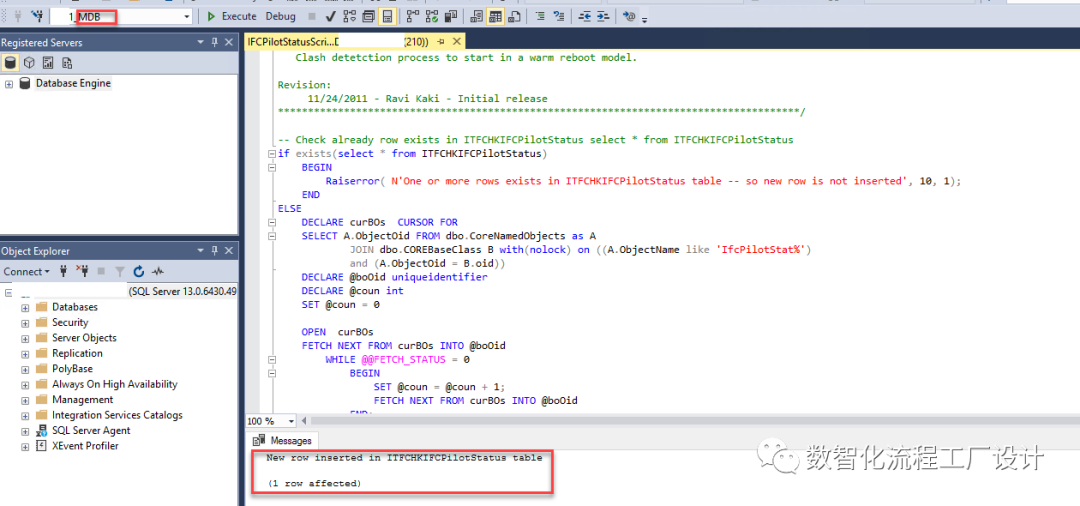

结果如下图：

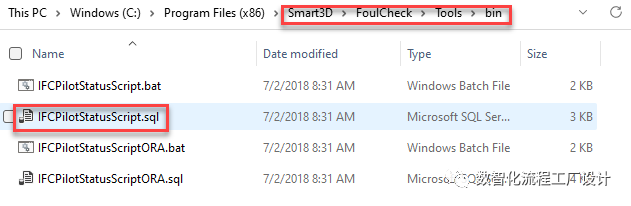

此语句也可在以下路径找到：[Smart3D 安装路径]\FoulCheck\Tools\bin\IFCPilotStatusScript.sql,如果是Oracle数据库，请执行IFCPilotStatusScriptORA.sql

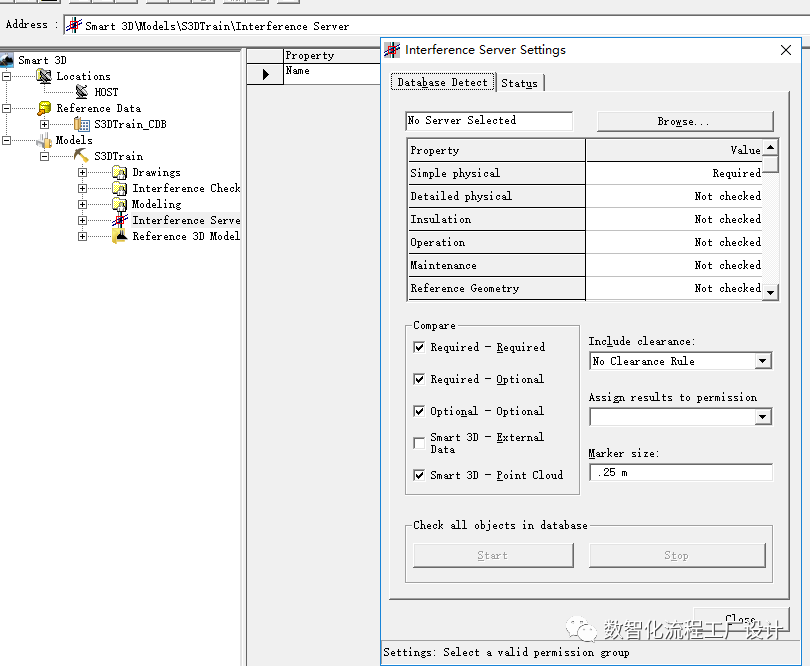

执行IFCPilotStatusScript.sql语句后，重新打开Project Management，此时已可正常设置Interference Checking Service
